Ricardo J. Ruiz Fernández

NimDump is a port of NativeDump written in Nim, designed to dump the LSASS process using only NTAPI functions.

• NimDump repository: https://github.com/ricardojoserf/NativeDump/tree/nim-flavour

• NativeDump repository: https://github.com/ricardojoserf/NativeDump

• NtOpenProcessToken and NtAdjustPrivilegesToken to enable the SeDebugPrivilege privilege
• NtGetNextProcess and NtQueryInformationProcess to get a handle to the lsass process
• RtlGetVersion to get OS information
• NtReadVirtualMemory and NtQueryInformationProcess to get modules information
• NtQueryVirtualMemory and NtQueryInformationProcess to get memory regions information

The tool supports remapping ntdll.dll using a process created in debug mode. For this it uses the NTAPI functions NtQueryInformationProcess, NtReadVirtualMemory, NtProtectVirtualMemory, NtClose, NtTerminateProcess and NtRemoveProcessDebug; and the Kernel32 function CreateProcessW.

Usage

nimdump.exe [-r] [-o:OUTPUT_FILE ]

• -r: Remap the ntdll.dll library

• -o: Dump file name

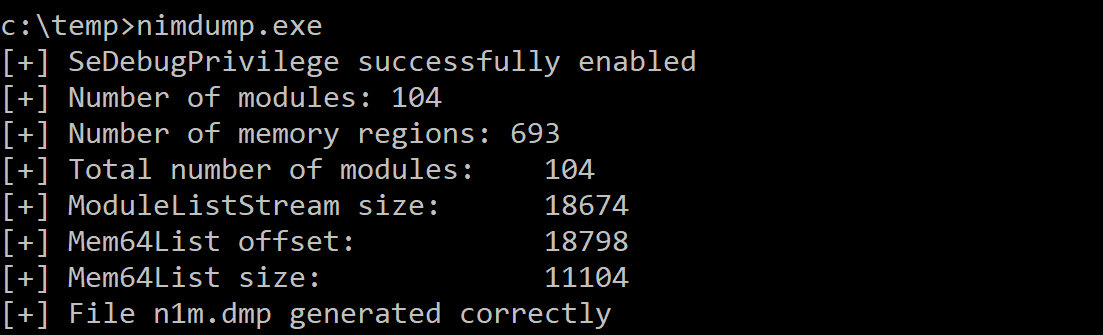

It creates a file named “n1m.dmp” by default:

nimdump.exe

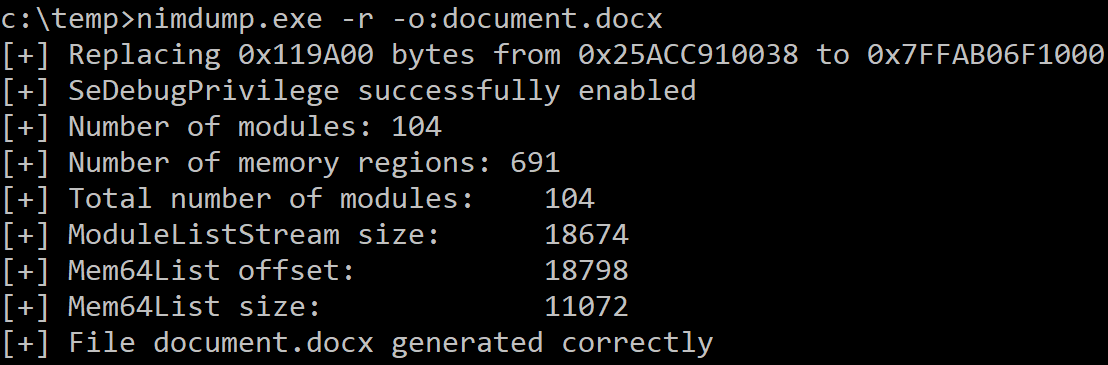

Using the parameter -r allows to remap the ntdll.dll library and -o to change the output file name:

nimdump.exe -r -o:document.docx

Compilation

In Windows, install the necessary libraries and compile the binary with:

nimble install winim zippy
nim c --cpu:amd64 --opt:size --d:release nimdump.nim

In Linux, install the compiler, nim and the necessary libraries:

sudo apt install mingw-w64
curl https://nim-lang.org/choosenim/init.sh -sSf | sh
source ~/.profile
export PATH=$HOME/.nimble/bin:$PATH
nimble install winim zippy

Finally, cross-compile the binary:

nim c --cpu:amd64 --opt:size --d:release --os:windows --gcc.exe:x86_64-w64-mingw32-gcc --gcc.linkerexe:x86_64-w64-mingw32-gcc nimdump.nim

Notes

• This is a port of NativeDump so it only works if PPL is not enabled

• It works fine on the latest versions of Windows 10 and 11, and has been tested successfully against common AV and EDR solutions.
